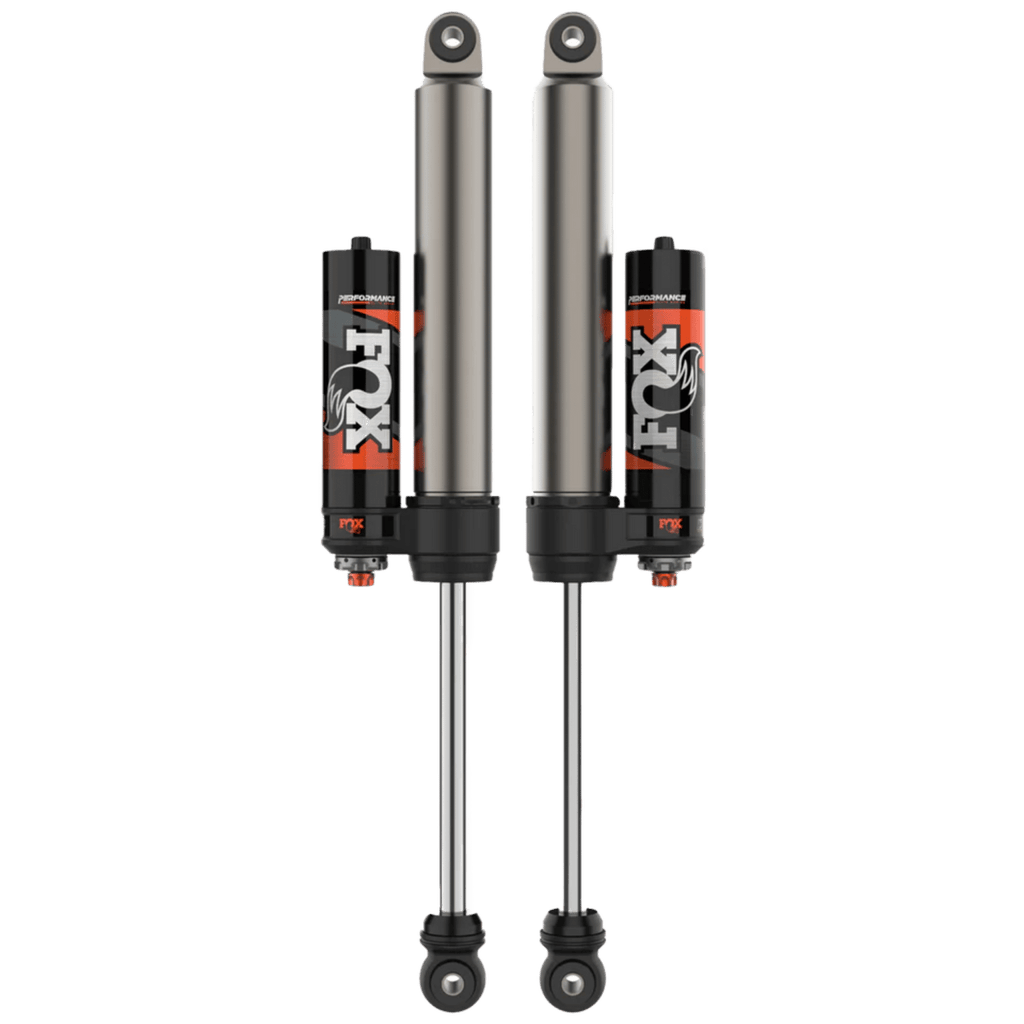

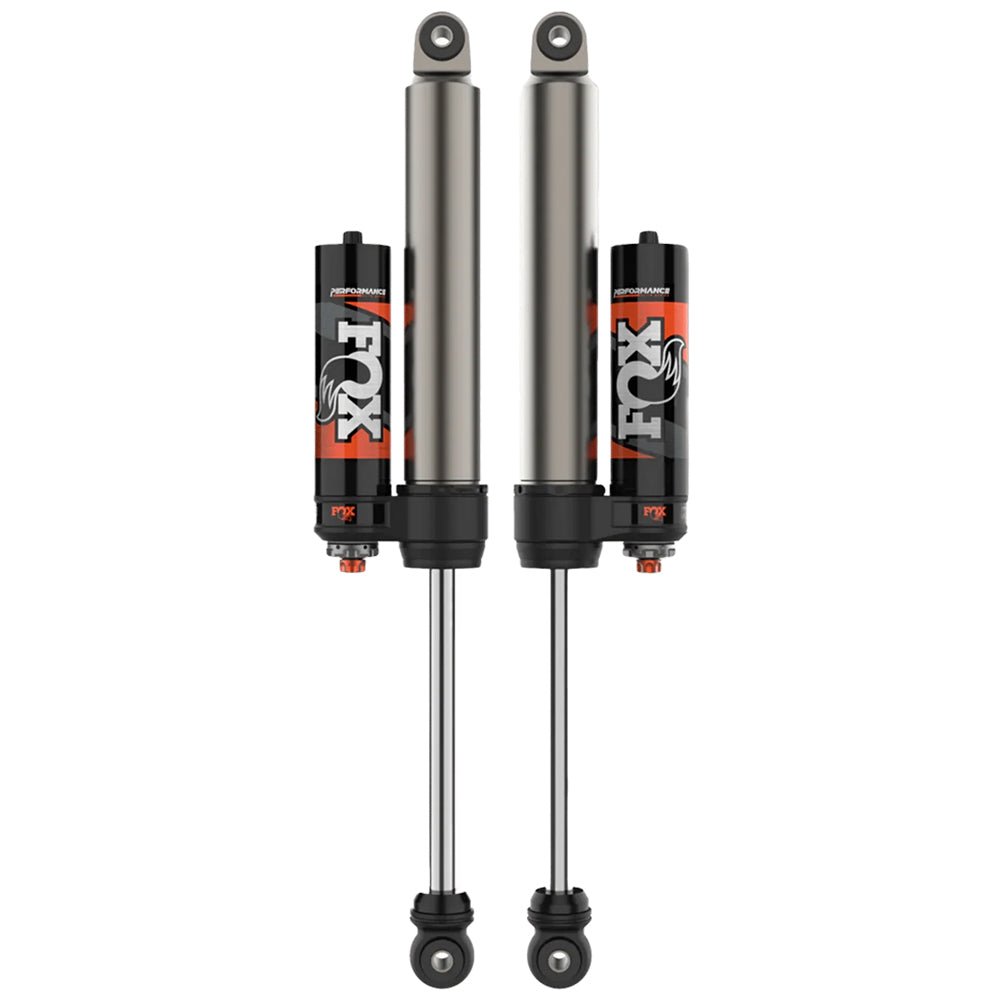

FOX PERFORMANCE ELITE SERIES 2.5 RAM 3500 Rear Shock 2-3.5" 2014+
FOX PERFORMANCE ELITE SERIES 2.5 RAM 3500 Rear Shock 2-3.5" 2014+
FOX PERFORMANCE ELITE SERIES 2.5 RAM 3500 Rear Shock 2-3.5" 2014+
Experience the ultimate ride with FOX's Performance Elite Series 2.5 Reservoir smooth body shocks. Designed for off-road races, these shocks are built to withstand even the most extreme conditions. Our athletes have tested and perfected them, providing you with a race-proven upgrade for your Truck or SUV. Get the enhanced ride quality and control you need for your off-road adventures with these high-performance shocks.
The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
Vehicle Suitability
- RAM 3500 Only Rear Shocks 2014+
Fox Product Specifications 883-26-101
| PART NUMBER | 883-26-101 |
| FEATURES | Performance Tuned For Vehicle Specific Application; Durable Zinc Plated Seamless Alloy Body; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance Elite |
| TRAVEL | 10.98 |
| REAR LIFT HEIGHT | 2-3.5 |
| BODY | 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
| BODY PLATING | Hard-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
| EXTENDED LENGTH | 29.41 |
| COMPRESSED LENGTH | 18.43 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | W/ Single Rear Wheels | Does not fit Air Suspension Equipped Trucks |
Get the right fit.
Check the model, year and variant listed in the product details. If you’re unsure, send us your vehicle details and the product name before ordering.
