FOX PERFORMANCE ELITE SERIES 2.5 RESERVOIR SHOCK REAR | INEOS GRENADIER- ADJUSTABLE
FOX PERFORMANCE ELITE SERIES 2.5 RESERVOIR SHOCK REAR | INEOS GRENADIER- ADJUSTABLE.
FOX Performance Elite Series 2.5 shocks featuring DSC EVO are a bolt-on solution tuned for the INEOS Grenadier. Optimise vehicle performance without compromising OEM reliability and vehicle performance.
Type III anodisation prevents corrosion and wear of the 2.5-inch aluminium bodies. External reservoirs increase oil capacity, allow additional shock stroke to maintain available travel, and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.

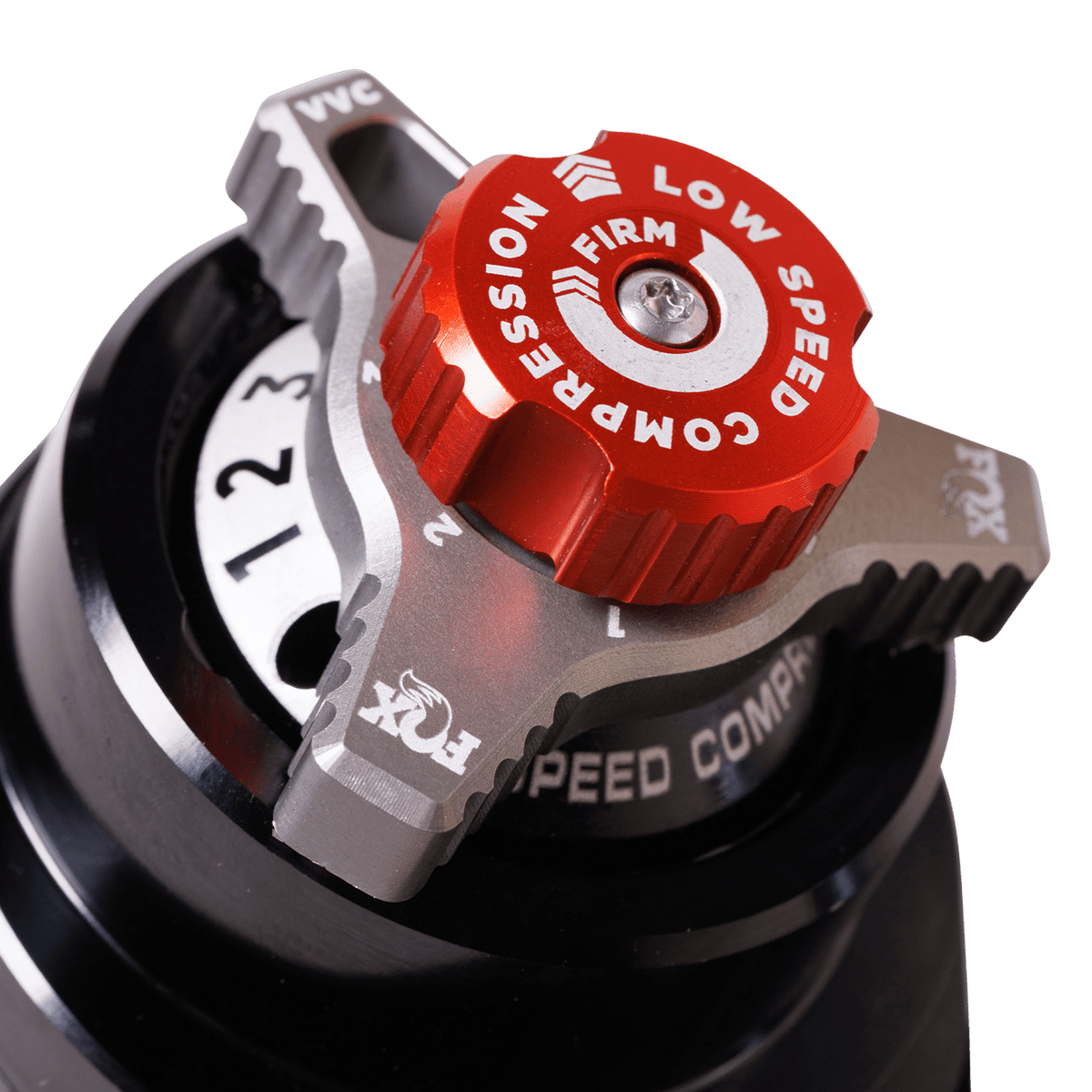

DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high speed compression without sacrificing small-bump sensitivity.
Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and improve on-road manners while remaining comfortable and in control.
| PART NUMBER | 883-26-273 |
| FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodised aluminium body 7/8" hard chromed steel shafts Vehicle-specific tuning maximises performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 8.58 |
| BODY | 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
| BODY PLATING | Hard-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 7/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
| EXTENDED LENGTH | 23.48 |
| COMPRESSED LENGTH | 14.9 |
| TOP MOUNT | Eyelet |
| BOTTOM MOUNT | Eyelet |
| FITMENT NOTES | Includes Resi to Body Clamp |
