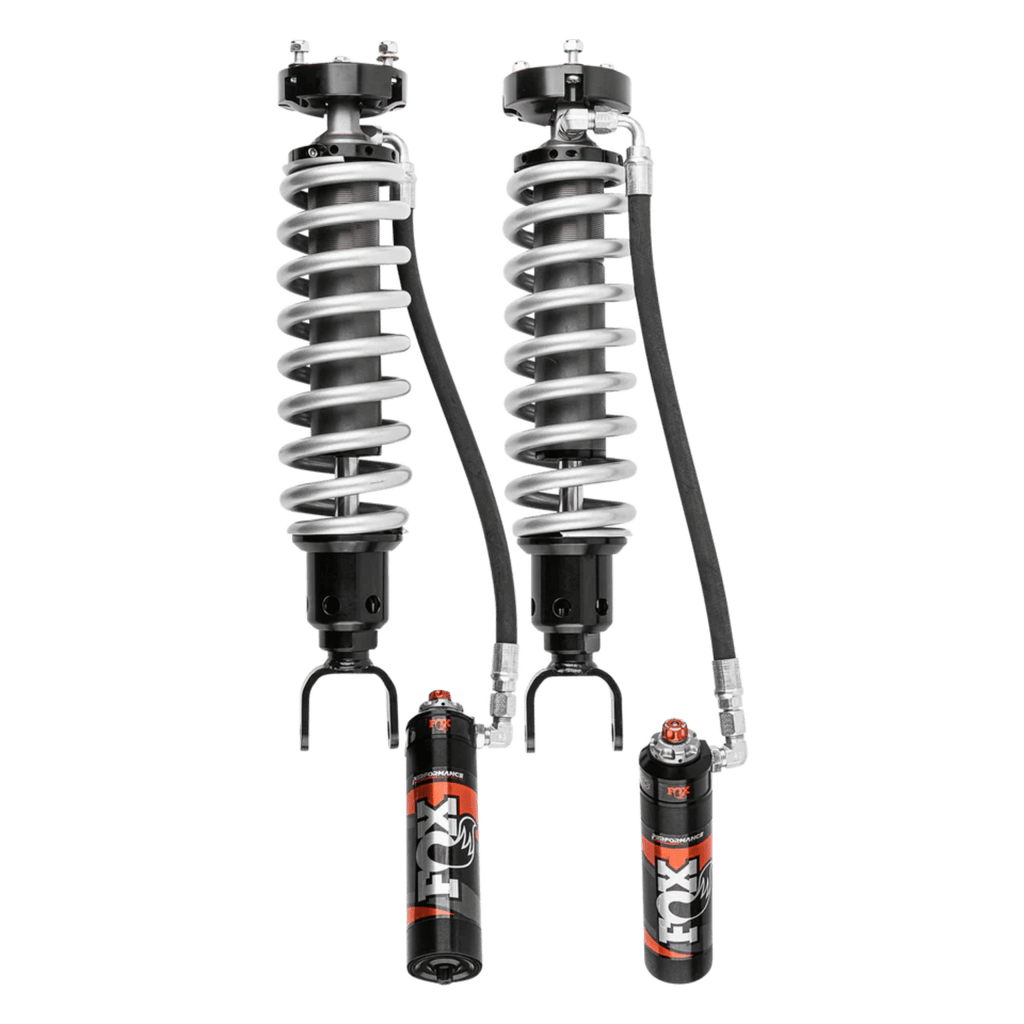

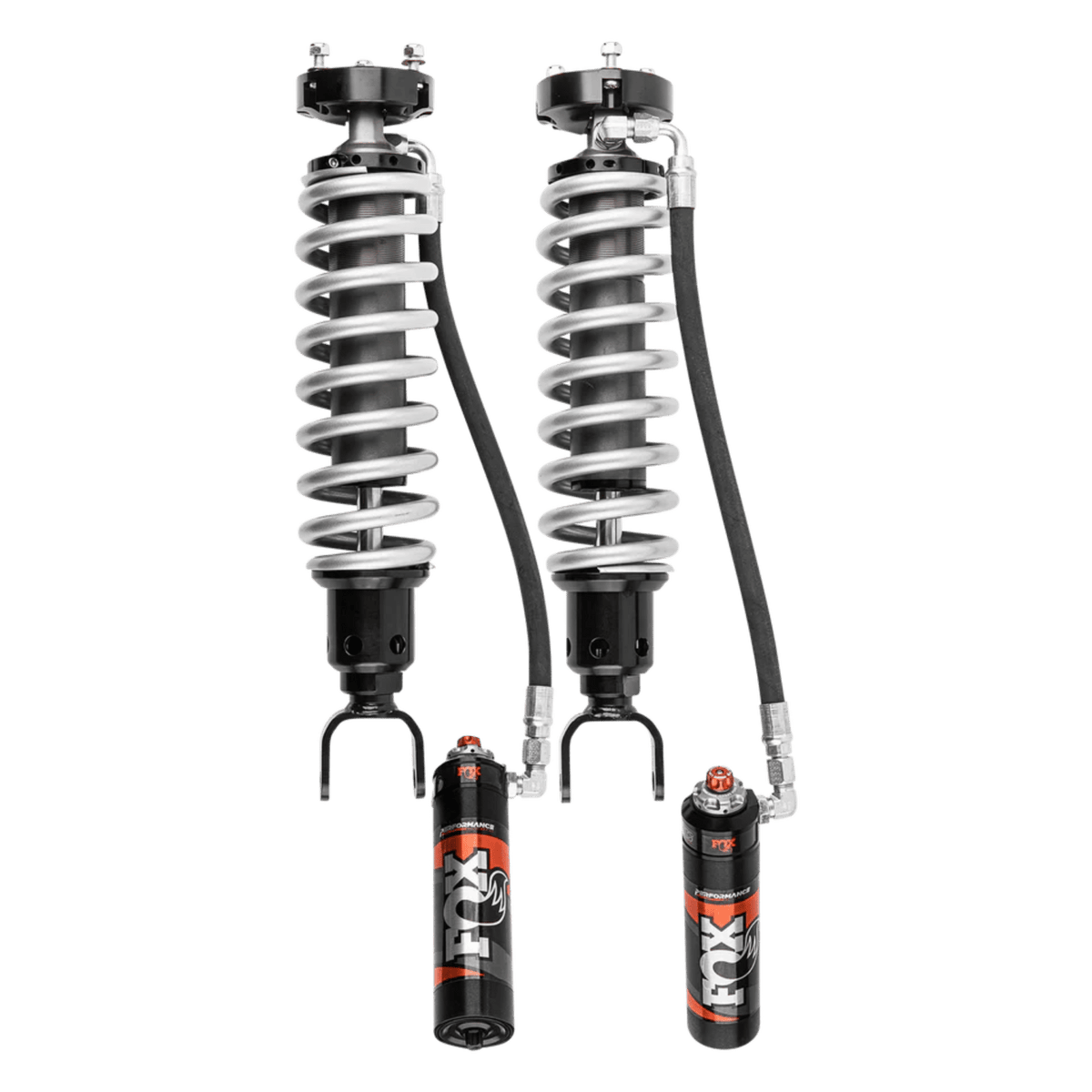

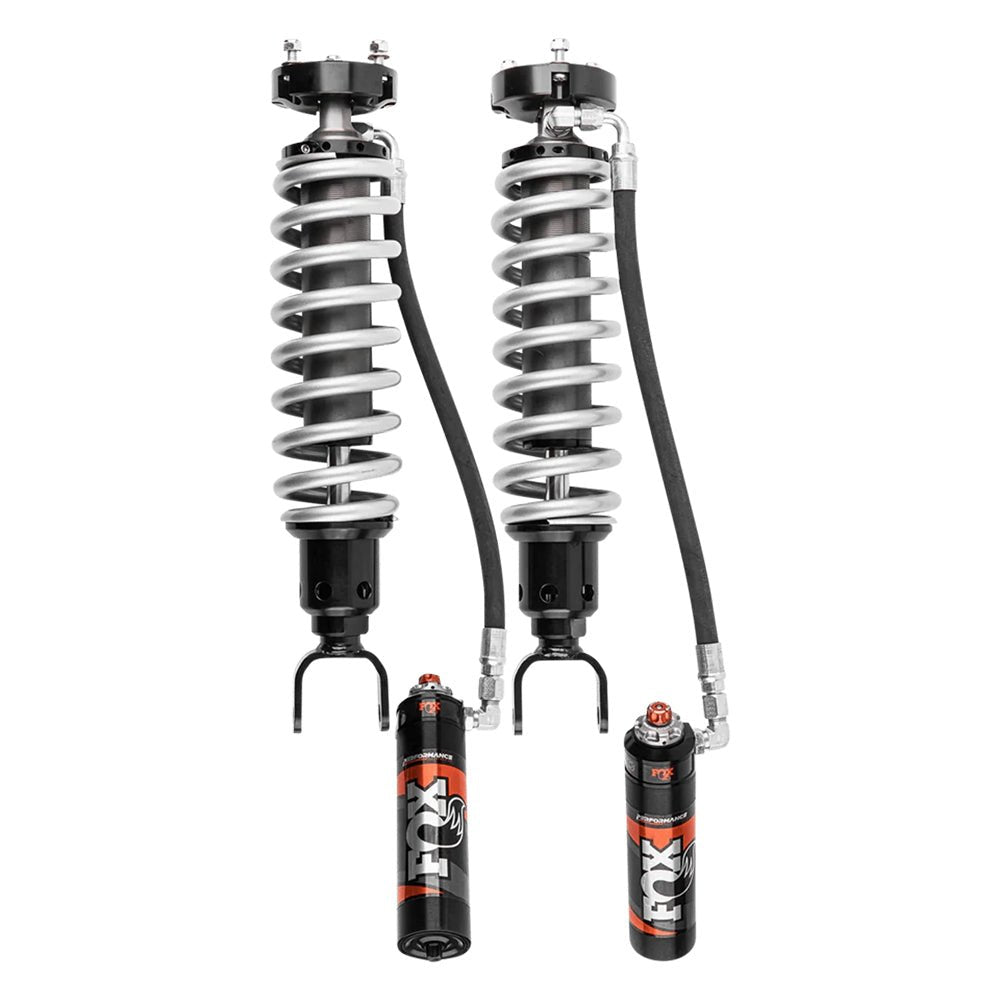

Fox PERFORMANCE ELITE SERIES 2.5 SHOCK DT RAM 1500 0-2" 2019+
Fox PERFORMANCE ELITE SERIES 2.5 SHOCK DT RAM 1500 0-2" 2019+
Fox PERFORMANCE ELITE SERIES 2.5 SHOCK DT RAM 1500 0-2" 2019+
Engineered for the hardcore and tested by the fearless, these Fox Performance Elite Series shocks laugh in the face of rough terrain. Built with coil-over reservoir technology, they deliver razor-sharp control whether you're conquering rocky trails or bombing down desert washes. Installation is straightforward, and the damping performance? Absolutely uncompromising. When top-tier racers demand precision under pressure, Fox delivers the goods—now available for your RAM 1500.
Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Performance Elite Series Coil-over Reservoir shocks deliver.
Vehicle Suitability
- DT RAM 1500 2019+
- Will require a after market UCA
- Will not work on a DS RAM
Fox Product Specifications 883-06-165
| PART NUMBER | 883-06-165 |
| FEATURES | Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; External Reservoir System Dissipates Heat Fast; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance Elite |
| TRAVEL | 6.24 |
| FRONT LIFT HEIGHT | 2-3 |
| BODY | 2.5" Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time |
| BODY PLATING | Hard-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 7/8" hard chrome plated steel shafts |
| PISTON | 6061-T6 hard-anodized, high flow aluminum piston |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | PTFE-lined, heat-treated, alloy steel spherical |
| EXTENDED LENGTH | 23.07 |
| COMPRESSED LENGTH | 16.83 |
| TOP MOUNT | TM |
| BOTTOM MOUNT | Clevis |
| FITMENT NOTES | Requires Upper Control Arm | Does Not Fit Air Ride Models |
Get the right fit.
Check the model, year and variant listed in the product details. If you’re unsure, send us your vehicle details and the product name before ordering.
Ask about this productFrom parts to a complete build.
For freight, availability or installation at our Alberton workshop, contact Silverback with your postcode and vehicle details. Check the product details for any inclusions specific to this package.
