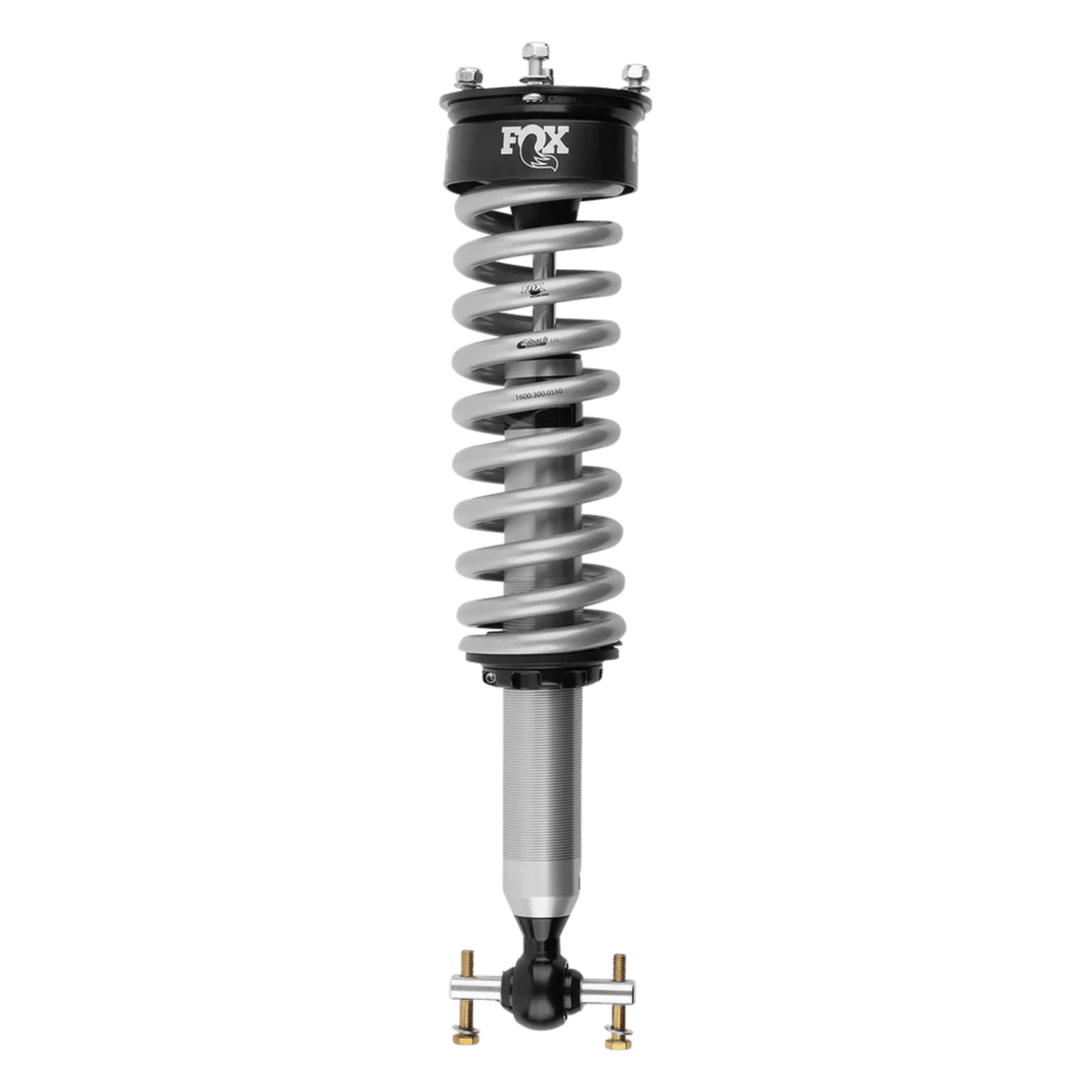

FOX PERFORMANCE SERIES 2.0 COIL-OVER IFP 3.5" Chevrolet Silverado 1500 LTZ, Trailboss, ZR2
FOX PERFORMANCE SERIES 2.0 COIL-OVER IFP 3.5" Chevrolet Silverado 1500 LTZ, Trailboss, ZR2
FOX PERFORMANCE SERIES 2.0 COIL-OVER IFP 3.5" Chevrolet Silverado 1500 LTZ, Trailboss, ZR2
Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminium body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
| PART NUMBER | 985-02-156 |
| FEATURES |
2.0 impact-extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body Application-specific springs 5/8 hard chrome-plated steel shafts Vehicle-specific valving to maximize performance Redundant sealing pack system: main seal, wiper seal, scraper seal |
| SERIES | Performance |
| TRAVEL | 4.47 |
| BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| PISTON | 5/8" hard chrome plated heat-treated alloy steel |
| VALVING | Two-stage shim stack increases off-road bottom-out resistance while mitigating road vibration and harshness |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| BEARINGS | Large diameter, heavy-duty spherical |
| EXTENDED LENGTH | 23.31 |
| COMPRESSED LENGTH | 18.84 |
| TOP MOUNT | TM |
| BOTTOM MOUNT | Bar Pin |
| FITMENT NOTES | Trail Boss and AT4 models requires UCA. |
Get the right fit.
Check the model, year and variant listed in the product details. If you’re unsure, send us your vehicle details and the product name before ordering.
Ask about this productFrom parts to a complete build.
For freight, availability or installation at our Alberton workshop, contact Silverback with your postcode and vehicle details. Check the product details for any inclusions specific to this package.
