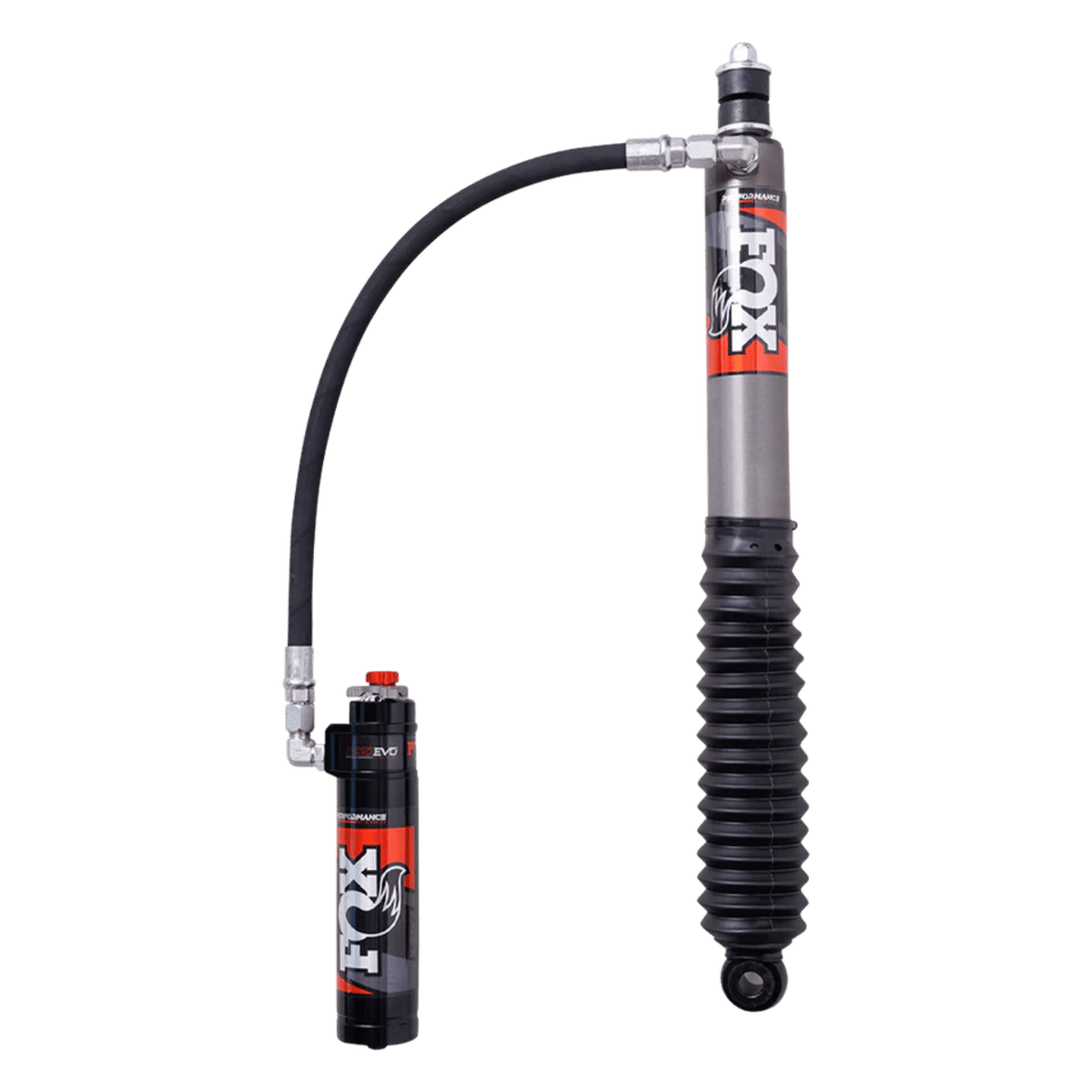

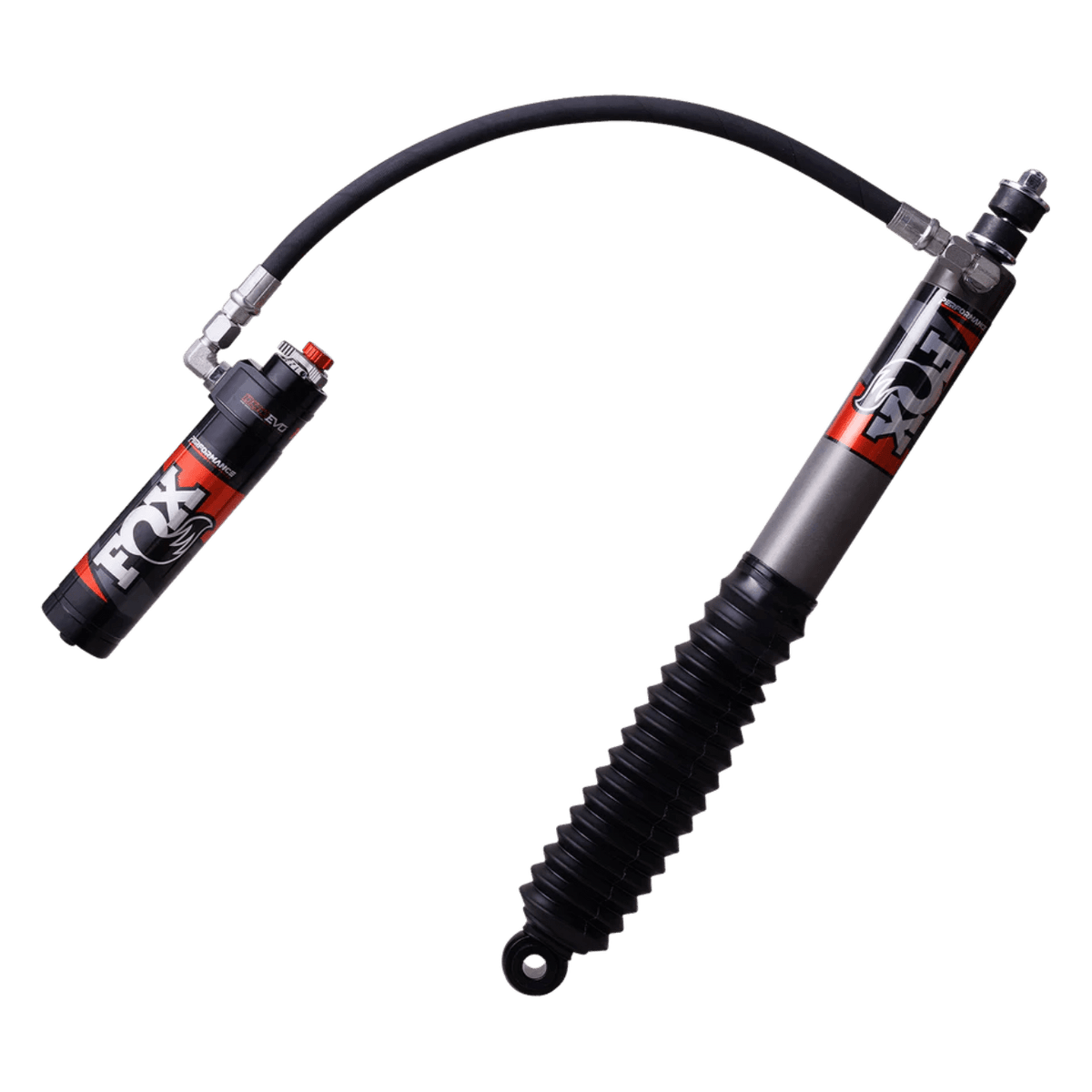

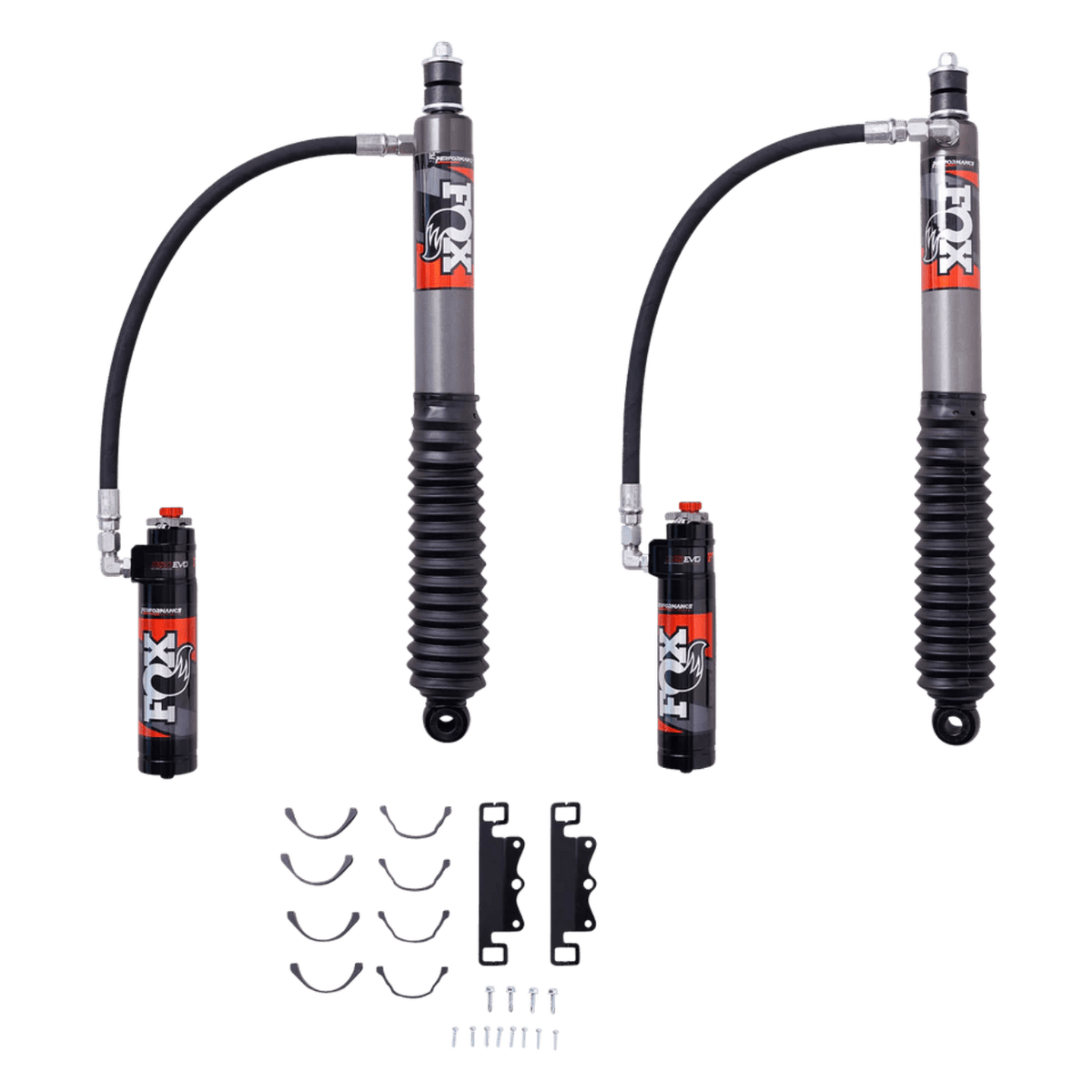

FOX PERFORMANCE SERIES 2.5 Rear Suspension for Toyota Land Cruiser LC300 22+
FOX PERFORMANCE SERIES 2.5 Rear Suspension for Toyota Land Cruiser LC300 22+

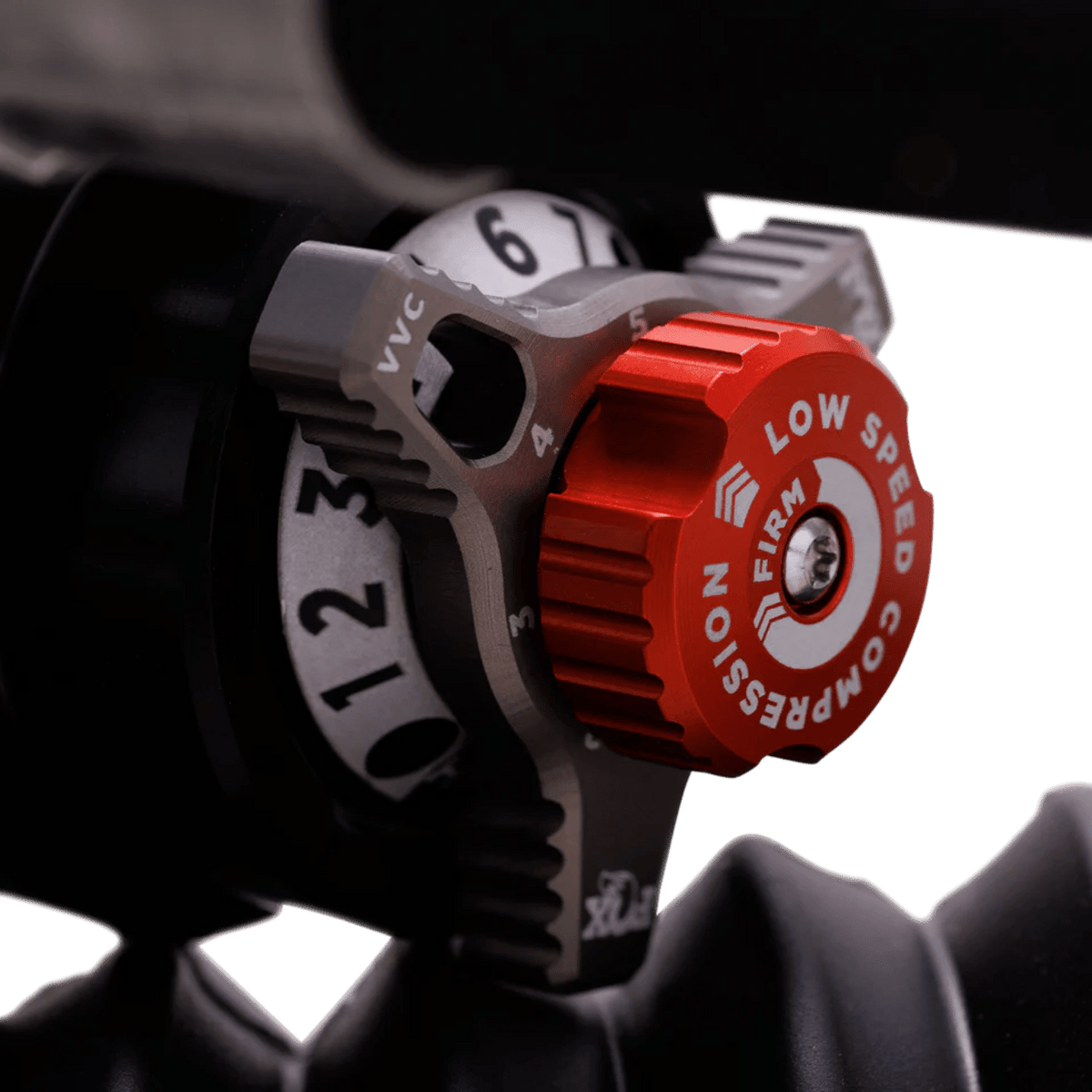

FOX Performance Elite Series 2.5 improve the LC300 and LX600 chassis by eliminating the vehicle’s forward rake, providing a level ride height, and increasing the suspension articulation. Type III anodisation prevents corrosion and wear of the 2.5-inch aluminium bodies. External reservoirs increase oil capacity and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock. DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn't add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of high speed compression without sacrificing small-bump sensitivity. Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and enhance on-road manners while remaining comfortable and in control.
| PART NUMBER | 883-26-146 |
| FEATURES |
2.5" impact-extruded and CNC-machined 6061-T6 Type III anodised aluminium body 7/8" hard chromed steel shafts Vehicle-specific tuning maximises performance Redundant sealing pack system: main seal, wiper seal, scraper seal External reservoir, with DSC EVO adjuster |
| SERIES | Performance Elite |
| TRAVEL | 9.48 |
| BODY | 2.5" Impact extruded and CNC machined 6061-T6 hard anodised aluminium body resists rust over time |
| BODY PLATING | Hard-anodised for a durable finish |
| COMPONENTS | Black-anodised, CNC-machined 6061-T6 billet aluminium |
| SHAFT | 7/8" hard chrome plated steel shafts |
| EXTENDED LENGTH | 25.78 |
| COMPRESSED LENGTH | 16.3 |
| TOP MOUNT | Stem Top |
| BOTTOM MOUNT | Eyelet |
Get the right fit.
Check the model, year and variant listed in the product details. If you’re unsure, send us your vehicle details and the product name before ordering.
Ask about this productFrom parts to a complete build.
For freight, availability or installation at our Alberton workshop, contact Silverback with your postcode and vehicle details. Check the product details for any inclusions specific to this package.
