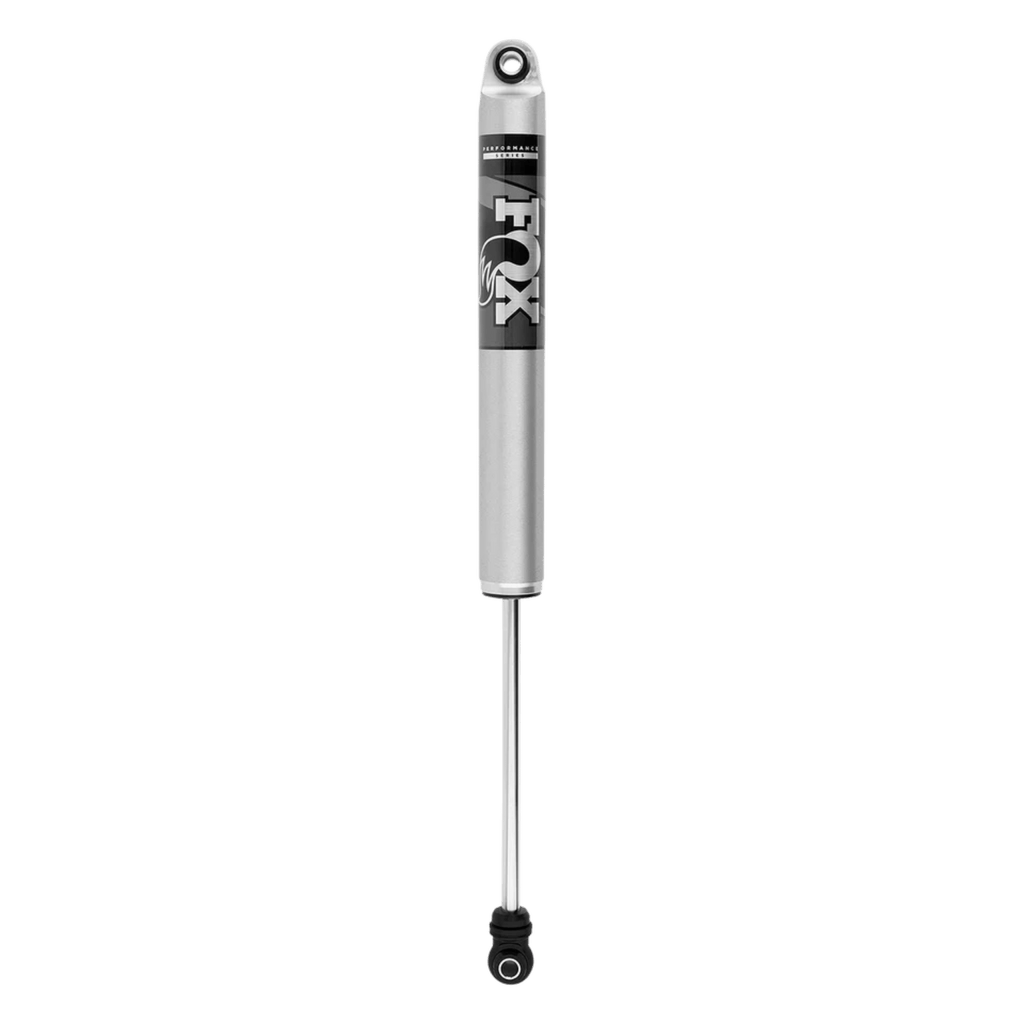

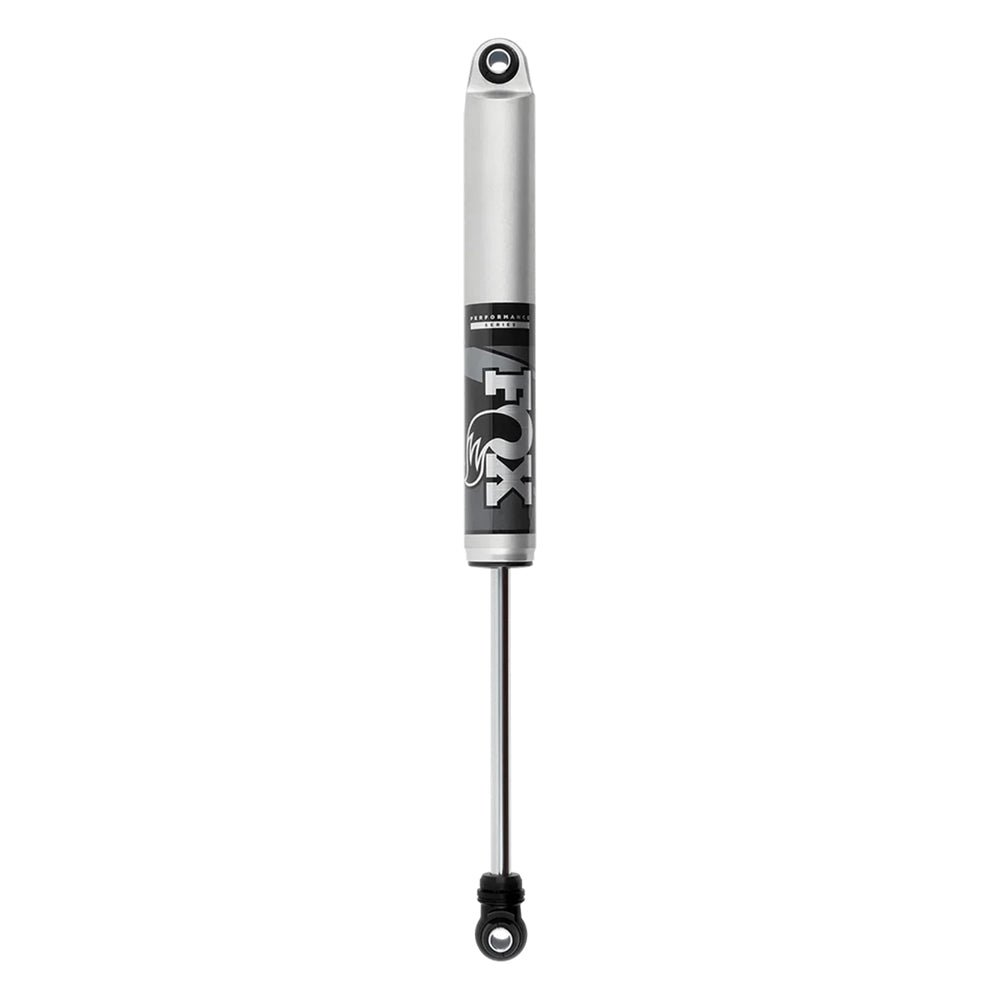

FOX PERFORMANCE SERIES 2.0 REAR SHOCK DS RAM 1500 0- 2" 2012 - 2024
FOX PERFORMANCE SERIES 2.0 REAR SHOCK DS RAM 1500 0- 2" 2012 - 2024
FOX PERFORMANCE SERIES 2.0 REAR SHOCK DS RAM 1500 0- 2" 2012 - 2024
Transform your Truck or SUV's performance with the FOX PERFORMANCE SERIES 2.0 REAR SHOCK. This shock is equipped with the latest technology to deliver a smooth and controlled ride on any terrain. The race-proven damping control ensures comfort on the road and predictable handling off-road, even in the toughest conditions.
The precision metal impact aluminium body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
Vehicle Suitability
- DS RAM 1500 2012 - 2024 Rear shock only
- Shocks sold individually.
- Will not suit a DT RAM
Fox Product Specification 985-24-032
| PART NUMBER | 985-24-032 |
| FEATURES | Performance Tuned For Vehicle Specific Application; Aluminum Body Dissipates Heat Faster Than Steel; IFP Separates Oil From High-Pressure Nitrogen Gas; Black Anodized CNC Machined Aluminum Components |
| SERIES | Performance |
| TRAVEL | 9.61 |
| REAR LIFT HEIGHT | 0-2 |
| BODY | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
| BODY PLATING | Clear-anodized for a durable finish |
| COMPONENTS | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| SHAFT | 5/8" hard chrome plated heat-treated alloy steel |
| PISTON | Race-developed high-flow piston design |
| VALVING | Application specific valving to maximize performance |
| SEALS | Redundant sealing pack system main seal, wiper seal, scraper seal |
| EXTENDED LENGTH | 26.41 |
| COMPRESSED LENGTH | 16.8 |
| TOP MOUNT | ES6 |
| BOTTOM MOUNT | ES6 |
Get the right fit.
Check the model, year and variant listed in the product details. If you’re unsure, send us your vehicle details and the product name before ordering.
Ask about this productFrom parts to a complete build.
For freight, availability or installation at our Alberton workshop, contact Silverback with your postcode and vehicle details. Check the product details for any inclusions specific to this package.
